LINDELACR fabricated custom-shaped solid aluminum for Guangzhou International Medical Exhibition and Trade Center (Health Ark / 健康方舟)—the first phase of Guangzhou International Medicine Port in Liwan, Fangcun. The shop package visible in the photos is a CNC-carved entrance canopy, folded cassettes, and corrugated veneer—not the glass curtain wall. The hall is already in operation as a mall-standard exhibition-trade building.
Health Ark: a mall-standard medical exhibition hall on the river
Liwan District’s 2026 notice places Guangzhou International Medicine Port east of Fangcun Avenue, south of Guangzhou Shipyard, and north of Yajisha Bridge. The port is a Guangdong “strong TCM province” project: about 730,000 m² of land and 2,000,000 m² of planned gross floor area across four plates. Health Ark is the first plate in operation—a “new exhibition-trade” hall built to high-end shopping-mall standards, combining meeting, display, and sales for global TCM and health brands. Those figures describe the port, not LINDELACR’s metal quantity.
The white shaped soffits and the entrance canopy are the metal language the camera reads. LINDELACR treated that language as a customized-for-you file: freeze the carved unfold and the repeating trays, then cut 3003 plate in Foshan.
| Item | What is on the record |
|---|---|
| Official name | Guangzhou International Medical Exhibition and Trade Center (Health Ark) |
| Location | Liwan, Fangcun; riverfront Medicine Port |
| Use | Exhibition + trade + sales; mall-standard public hall |
| Status | In operation (Liwan District public notice) |
| LINDELACR visible scope | CNC-carved canopy; folded box cassettes; corrugated veneer; shop grind |
| Plant | Foshan 20,000 m²; 1,000+ engineering projects |
The carved canopy is the shop drawing you can photograph
The entrance canopy is a white, organic CNC-carved aluminum field on branching columns—shaped veneer, not a flat grid. Openings are nested, then the tray is folded so the carved face stays in plane. An open canopy takes weather. LINDELACR’s default for that plane is PVDF to AAMA 2605, dry film ≥ 30 μm, on 3003-H14 typically 2.0–3.0 mm. Interior corrugated or box trays under a roof can be powder to AAMA 2604. Do not invent a kPa or a drawing number for this canopy.

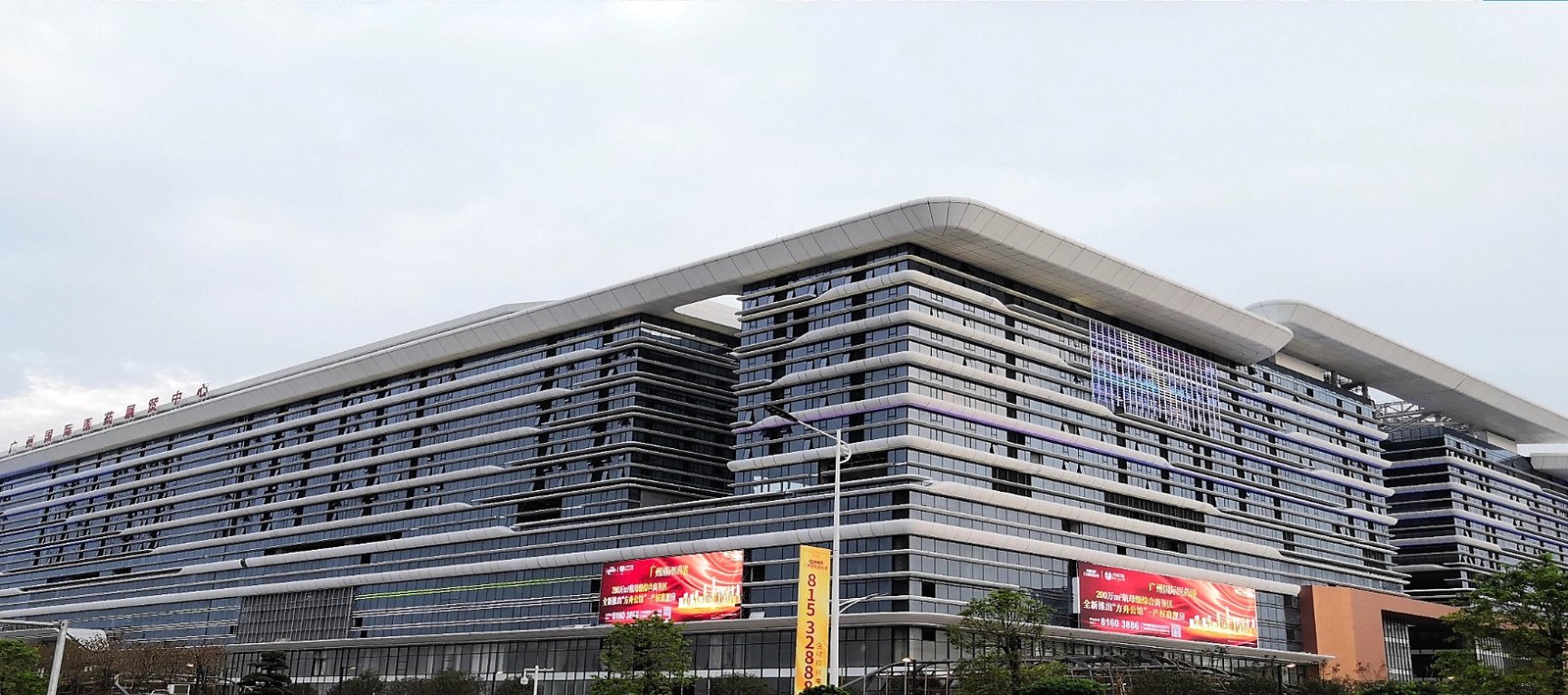

The stepped white fascia on the hall is the same family as a stadium or mall soffit: custom-shaped solid plate, shop-folded, hung as numbered trays. That is why this project sits next to the 3.0 mm PVDF shaped-veneer FAQ rather than a glass-wall brochure. LINDELACR’s default alloy on those trays is 3003-H14; thickness is typically 2.0–3.0 mm, with 3.0 mm where a carved opening or a deep return leaves less remaining section. Interior 1100 stays on simple, low-wind planes only.
The Medicine Port’s other three plates—headquarters harbour, medicine innovation valley, and a smart health living quarter—are still the district’s plan, not this shop ticket. LINDELACR priced and cut the metal that appears in these photographs: canopy, fascia language, corrugated and box trays. Do not copy the port’s 2,000,000 m² GFA onto a cladding bid.
Foshan sequence: grind, fold, corrugate, then one coating lot
Before coating, a cassette sits on the bench as mill-finish 3003: returns already folded, holes in the flange, the face being ground. Box-section trays stack on the cart after the brake—typical 20–25 mm return unless the bay needs a deeper stiffener. Corrugated corrugated ceiling panel stock is the repeating rib language for interior or soffit runs that do not need a unique carved nest.
Scan or BIM → unique unfold → CNC carve or punch → brake or compound form → grind → one PVDF or powder lot → crate by zone. Unique carved petals do not share a nest with a repeating corrugated blank. They can share a colour only when they share that coating lot. Typical shop return is 20–25 mm unless the fascia needs a deeper stiffener. First article is checked on the BIM split before the rest of a unique carved run leaves the brake.
The district text also calls Health Ark a one-stop procurement hall for TCM and tonic brands, online and offline. That is why the entrance canopy has to read as one white field at noon and under canopy light: one coating batch, numbered trays, no site-mixed touch-up that will chalk next to a factory film. LINDELACR packs by zone so the hang crew matches code to drawing instead of trimming carved edges on a live plaza.
Frequently asked questions
What is Guangzhou International Medical Exhibition and Trade Center?
Health Ark (健康方舟) is the first phase of Guangzhou International Medicine Port in Liwan, Fangcun—east of Fangcun Avenue, south of Guangzhou Shipyard, north of Yajisha Bridge. Liwan District describes it as a mall-standard exhibition-trade hall already in operation: meeting, display, and sales for the health-industry port.
What shaped aluminum did LINDELACR fabricate for this project?
From the shop and site photos: a CNC-carved entrance canopy, folded box-section cassettes, corrugated aluminum veneer, and ground returns before coating. LINDELACR does not claim the glass curtain wall. The metal is solid plate from the Foshan 20,000 m² plant, not ACP skins.
Was the Health Ark canopy PVDF or powder-coated?
An open entrance canopy takes weather, so LINDELACR’s default for that plane is PVDF to AAMA 2605, dry film ≥ 30 μm, on 3003-H14 typically 2.0–3.0 mm. Interior or fully sheltered trays can be powder to AAMA 2604. The ticket follows exposure, not the building’s medical name.
What should a contractor send to price a similar carved canopy?
Send the canopy 3D or BIM, span, whether the plane is open to rain, and a coating chip. LINDELACR returns a carved-versus-folded split, a 2.0 or 3.0 mm note, and a 1:1 coated sample from Foshan.
Request 3.0 mm samples and project BIM drawings
If the next medical hall or mall canopy needs carved and folded plate from one shop file, send the 3D and the exposure note. LINDELACR will return a tray split, a 2.0 or 3.0 mm note, and a coated 3.0 mm sample from the 20,000 m² Foshan plant.
