Modern infrastructure demands a flawless convergence of aggressive geometric vision and heavy-duty
structural survival. For the Hunan Toll Station Mega-Project, the architectural blueprint dictated a massive,
free-flowing, wave-like canopy that seamlessly mimics aerodynamic fluid dynamics. To transform this
ambitious parametric concept into a rigid physical landmark, Lindelacr engineered a comprehensive,
blueprint-to-site bespoke hyperbolic aluminum cladding system.
Key Project Metrics:
• Material Specified: Premium Architectural Grade Aluminum Solid Panel (3003-H24)
• Surface Finish: AkzoNobel PVDF Coating (3-Coat System, 20-Year Weather-Resistance Guarantee)
• Fabrication Technology: Multi-Axis CNC Stretching, Laser Cutting, and Custom Mold Shaping
• Application Environment: High-Exposure Infrastructure Roof Canopy and Facade Envelope
Structural Deep-Dive: The Challenge of 3D Double-Curved Facades
Unlike standard linear or single-curved panels, a hyperbolic (double-curved) aluminum solid panel
possesses varying radii of curvature across both its X and Y axes. Standard brake forming or sheet rolling
cannot achieve these fluid contours without causing severe metal thinning, tearing, or oil-canning surface
distortion.
To bypass these manufacturing risks, the PRANCE engineering desk initiated a rigorous structural workflow:
CAD/BIM Drawing Deep Integration: We extracted the exact parametric surface data from the
contractor’s BIM models, segmenting the wave canopy into optimized, individually code-marked panel
grids.
Advanced CNC Stretch-Forming: Each 3003-H24 aluminum sheet underwent precision multi-axis
stretching over custom-machined male/female steel dies to secure consistent thickness tolerances across
the deepest hyperbolic draws.

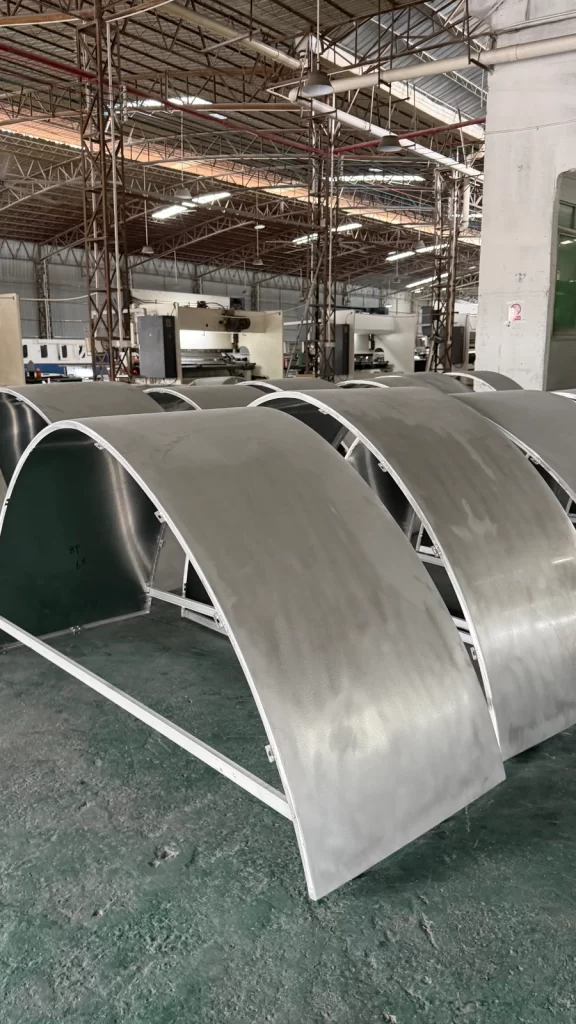

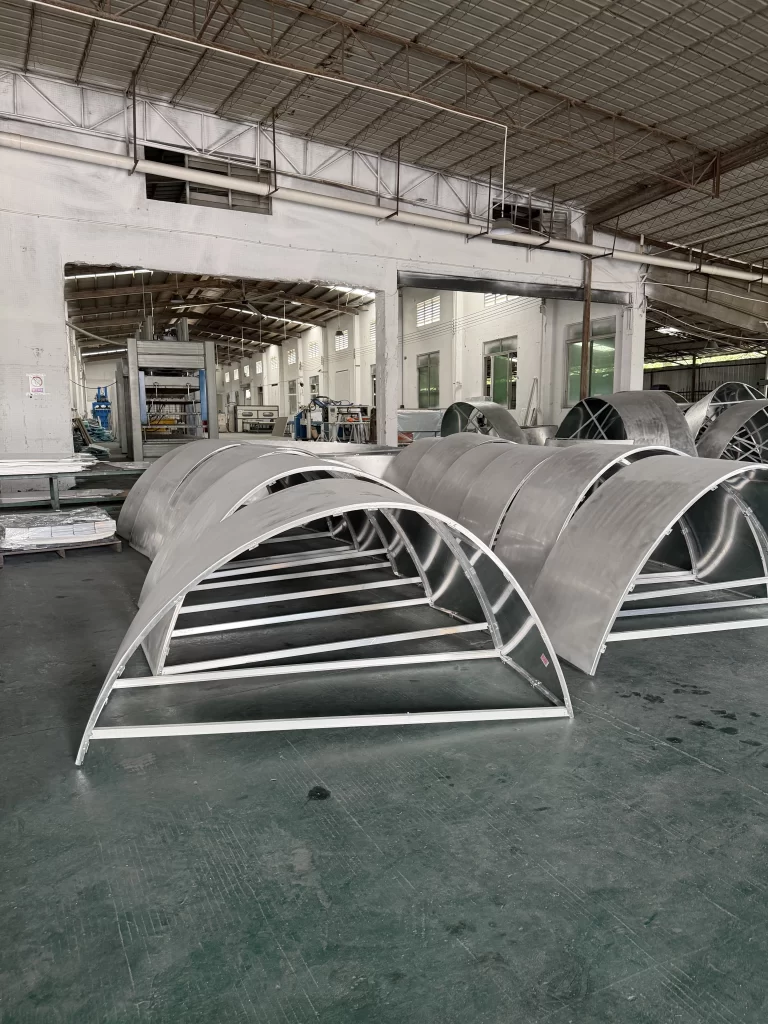

Reinforced Sub-Frame Integration: To handle the unique wind-load challenges of an open-air highway
toll plaza, the backside of each panel features custom-profiled stiffeners welded via CNC studs,
maintaining absolute flatness under structural stress.
In-House Manufacturing & Shop Floor Precision
Precision Laser Perforation & Cutting: Edge tolerances were locked within ±0.5mm using high-power CNC lasers to guarantee perfect joint alignment during final site installation.
Artisanal TIG Welding & Seamless Grinding: Panel corners and return lips were masterfully TIG-welded and ground smooth by certified technicians, ensuring that the critical “one-grid lines” remain structural yet visually seamless.
Automated PVDF Coating: A multi-stage chemical pre-treatment followed by an automated AkzoNobel PVDF liquid spray line guarantees an uncompromised barrier against UV rays, acid rain, and heavy exhaust emissions.

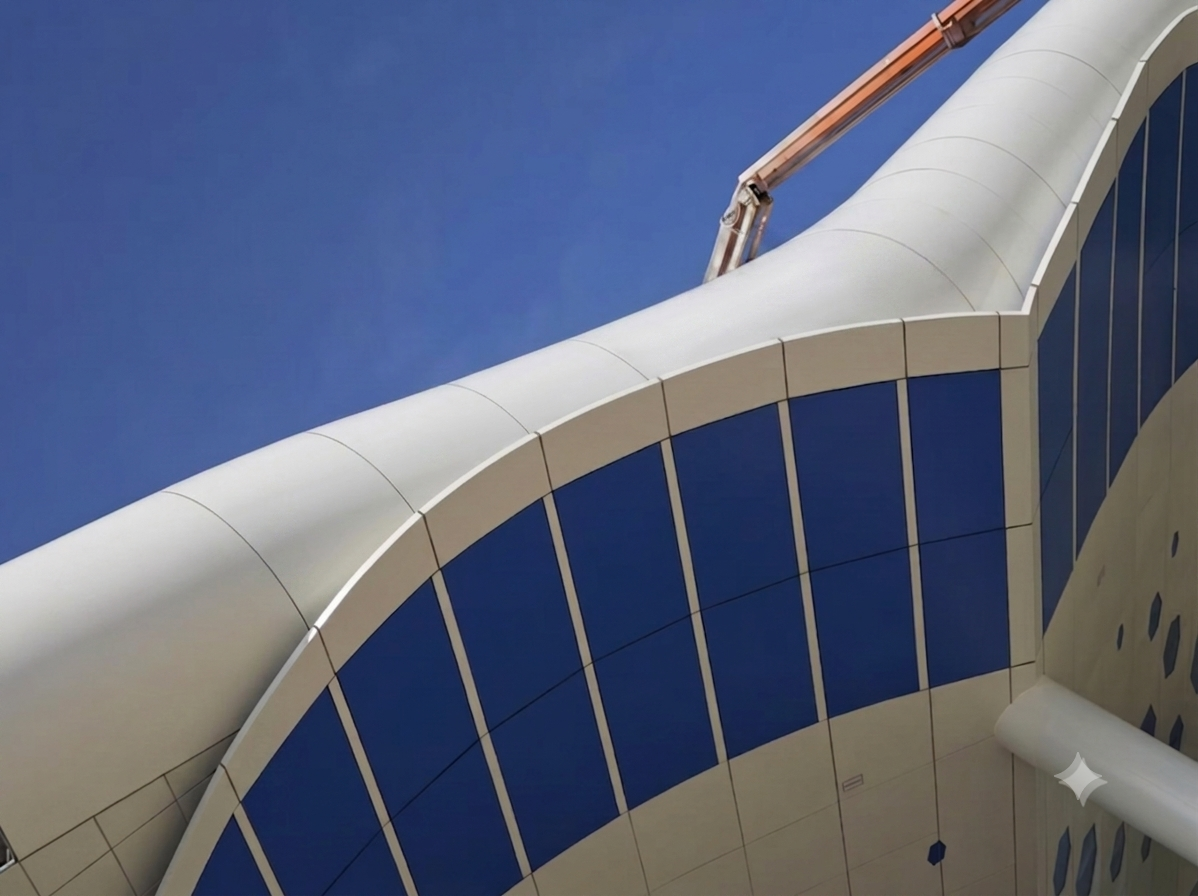

On-Site Installation: Achieving Flawless Alignment
3D Adjustable Bracket System: Allowed installers to micro-adjust panel positioning in three dimensions,absorbing on-site structural deviations and preventing stress transfer to the aluminum skin.
Clean Joint Detailing: By preserving a controlled, engineered joint width backed by high-performanceweather silicone and EPDM gaskets, the installation retains its crisp “grid lines” while effortlessly accommodating thermal expansion and contraction.
Infrastructure-Grade Durability & Performance Compliance
Lindelacr hyperbolic panels are not mere decorative skins; they are engineered architectural envelopes built to code:
Non-Combustible (Class A): Fully compliant with international fire safety regulations for public transportation hubs.
High Wind-Load Resistance: Stiffener layout calculated to withstand extreme wind pressures typical of open highway crosswinds.
Low Maintenance/Self-Cleaning: The slick PVDF finish allows rainwater to naturally wash away industrial soot and highway dust, keeping the landmark pristine for decades.
